| Model No. | BT77 |
| IP Standard | IP65 Waterproof/Shockproof |
| Shockproof | 1 meter high drop |

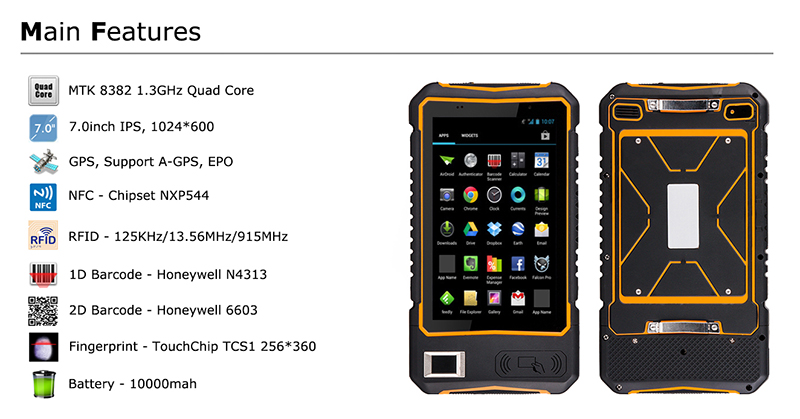

| Basic | CPU | MTK8382 Quad Core 1.3GHz |

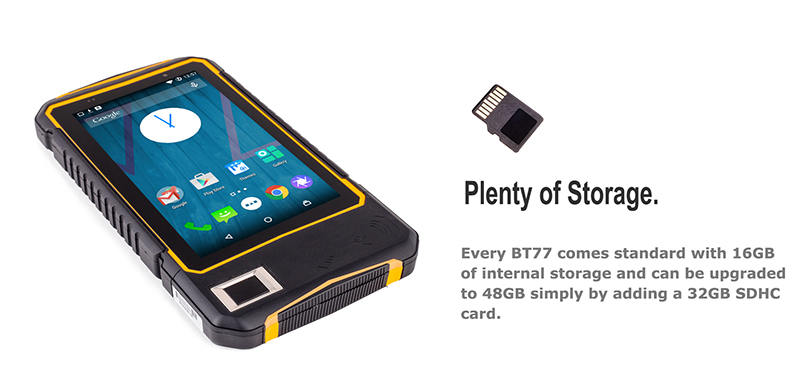

| Memory | LPDDR3 1GB + EMMC 16GB |
| OS | Android 4.4.2 |

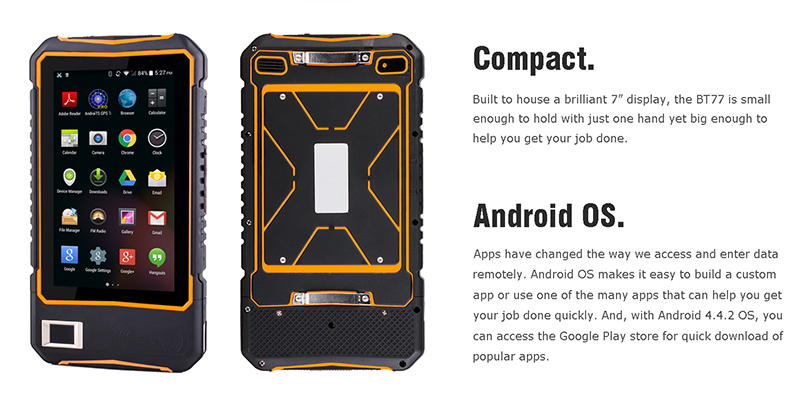

| Display | 7.0 inch IPS 1024*600 |

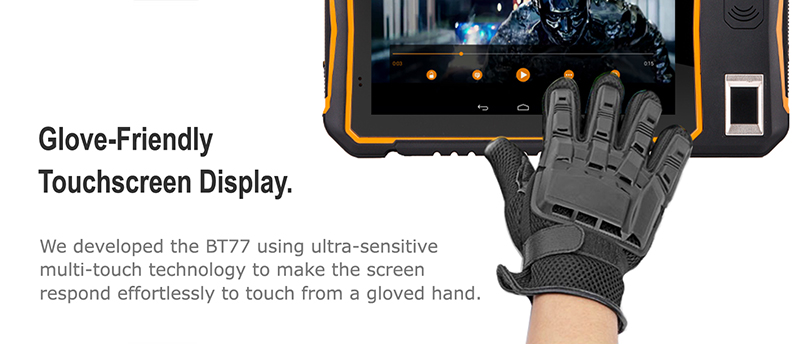

| Touch Screen | 5 point touch |
| GSM | 850/900/1800/1900MHz |
| WCDMA | 850/1900/2100MHz |

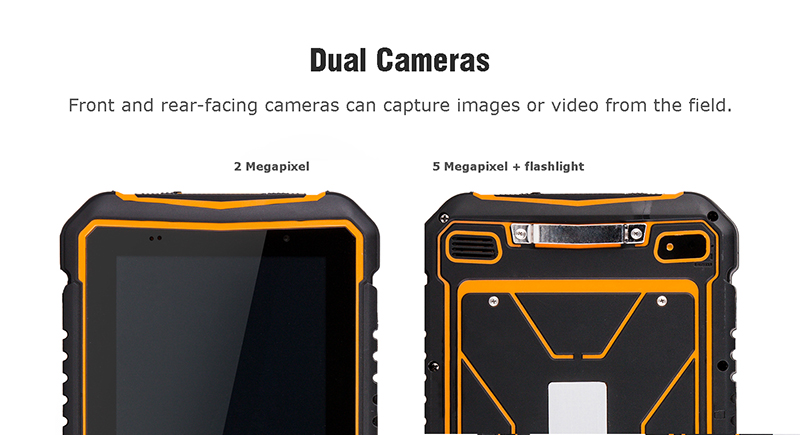

| Camera | 2.0MP Front + 5.0MP Camera, Flashlight |
| WIFI | IEEE 802.11b/g/n |
| Bluetooth | v4.0 - Low Energy Consumption |

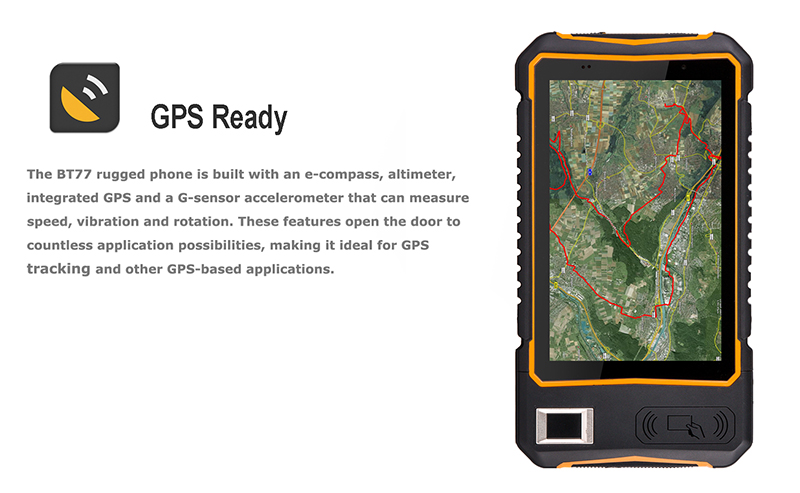

| GPS | Satellite Navigation GPS chip Built-in, Support A- GPS,EPO |
| Battery | 10000mAh |
| Standby Time | 720 hours |
| Charging Time | < 5 hours |
| Interface(optional) | UART-TTL/RS485/SPI/I2C/USB OTG/ADC/GPIO/INT |

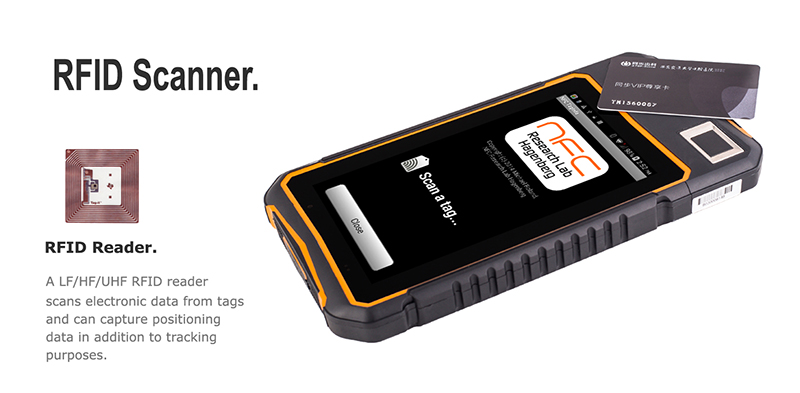

RFID
(Optional) | Ultra High Frequency | Built-in 1.5m or with pack 5 m distance for EPC C1 GEN2 / ISO18000-6 - c protocol of 860-960MHZ tag read operation |
| High frequency | 0 - 7 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags for reading and writing |
| Low frequency | 125 K / 134.2 K animal ear tag (NFC Classic) |
NFC
(Optional) | Frequency | 13.56MHz |
| Baud Rate | 9600-115200 bits/s |
| Support Protocol | ISO/IEC 14443A/B/15693 |
| Support Card | NFC One S50/Ultralight/One S70/Pro, Ntag203, AT88RF020, 66CL160S, SR176, SRIX4K, I-code 1/2, TI RFID Tag-it HF-I, EM4135, EM4034 |
1D Barcode
(Optional) | Module | Honeywell N4313 |
| Support | Code 39, Code 93, Code 128, Code bar, EAN-13, EAN- 8, UPC-A, UPC-E, ITF 14, UCC/EAN-128, ITF 25, Matrix 25, EAN-128, ISBN |
| Read distance | 0 cm - 50 cm |
| Read Speed | 104 ± 12 scans/S |
| First read rate | > 99% |
| Error rate | < 0.01% |
| false reject rate | < 0.01% |
2D Barcode
(Optional) | Honeywell-6603 | Software decoding - error rate < 0.01% |
| 2D Code | PDF417, MicroPDF417, MaxiCode, Data Matrix, QR Code, Aztec, Aztec Mesa, Code 49, UCC Composite |
| 1D Code | Code 39, Code 128, Codabar, UPC, EAN, Reduced Space Symbology, Code 93, Codablock |
| Postal Code | Postnet (US), Planet Code, BPO 4 State, Canadian Post, Japanese Post, KIX (Netherlands) Post |
Fingerprint

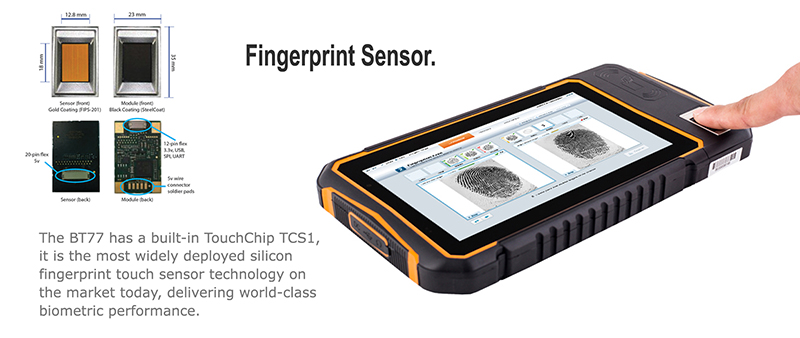

(Optional) | Module | TouchChip® TCS1 |
| Sensor types | inductive, image size: 256 * 360, image resolution: 500 dpi |
| Registration time | < 0.5 seconds |
| comparing time | < 0.1 s |
| Boomed from | < 0.1% |
| recognize rate | > 99.999% |
| fingerprint capacity | 512 |
Active in Close Communication
(Optional) | Active 2.45G | Distance is 200m, can be read all at once |
| 433 | Can Read more than 200m distance(Adjustablet) |
| Environment | Operating temperature | (-20°C) - (50°C) |
| Storage temperature | (-20°C) - (70°C) |
| Relative humidity | 10% - 90%RH |
| Physical Parameters | Weight | 650g(including battery) |
| Size | 242*129*21mm |
